SMART TECHNOLOGY

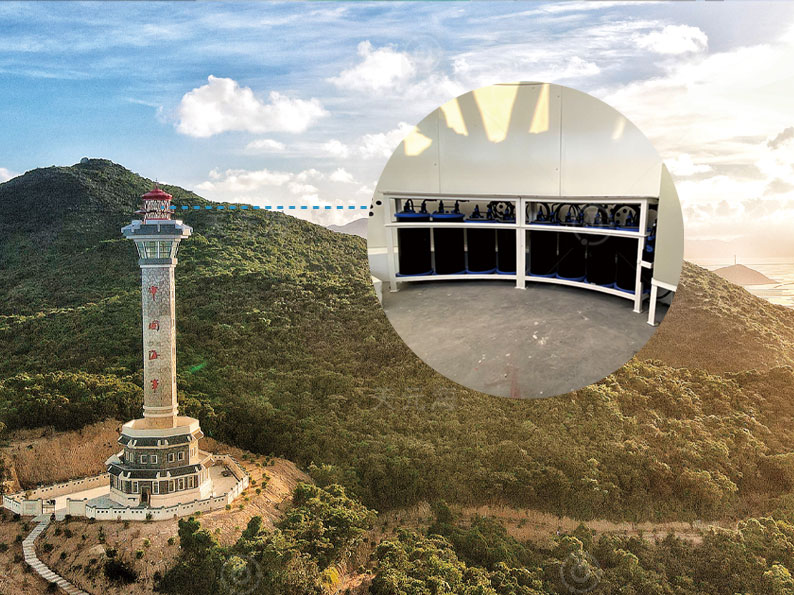

The Blue Whale-4100LN is specifically designed for maritime facilities, featuring a more specialized photovoltaic energy storage battery, which consists of an integrated intelligent battery management system, high-quality lithium cells, a solar photovoltaic control unit, and a highly reliable waterproof casing.
The built-in lithium battery management system is equipped with protection mechanisms for overcharging, over-discharging, and overcurrent, effectively protecting the battery and extending its lifespan.
The information display screen provides a comprehensive overview of battery operation.
Technical Specifications
|
Voltage Battery |
DC14.8V |
|
Pack Capacity |
1.54KWH |
|
Output Voltage |
DC12.2~16.8V |
|
Charging Maximum Current |
25A |
|
Charging Overcurrent Protection |
25.5A (±0.5A) Delay time less than 1S, automatic recovery after overcurrent release |
|
Continuous Discharge Current |
Maximum 25A |
|
Short Circuit Protection |
100A ( ± 1A ) delay time less than 400uS, self-recovery after short circuit removal |
|
Over-discharge Protection Voltage |
DC12.2V |
|
Over-discharge Release Voltage |
DC13.4V |
|
High Temperature Charging Protection Value |
Above 55℃ duration 4S |
|
High Temperature Charging Protection Release Value |
Below 54℃ duration 4S |
|
Low Temperature Charging Protection Value |
Below -10℃ duration 4S |
|
Low Temperature Charging Protection Release Value |
Above -9℃ duration 4S |
|
BMS Power Consumption |
40mW (typical value) |
|
Bluetooth Effective Range |
20 meters |
|

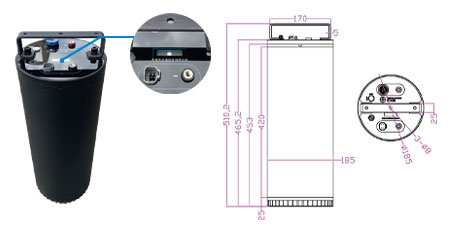

Dimensions |
Φ185mm*510mm |
|
Weight |
16.8kg |
|
Operating Temperature |
-10℃～+55℃ |
|
Operating Humidity |
20～99% RH |
|
Protection Level |
＞IP67 |
